PRECISION SERIESPLANETARY GEARHEADS

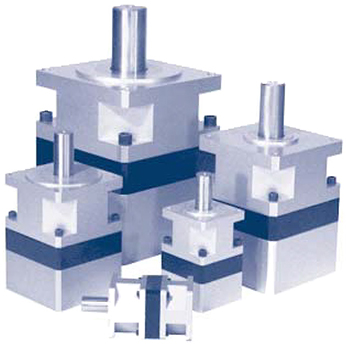

The Precision Series (PL) is Carson’s high-end line of planetary gearheads designed for the most strenuous applications. Made in sizes 17, 23, 34, 42 & 56 with standard ratios from 3:1 to 100:1. We are capable of producing ratios up to 10,000:1.

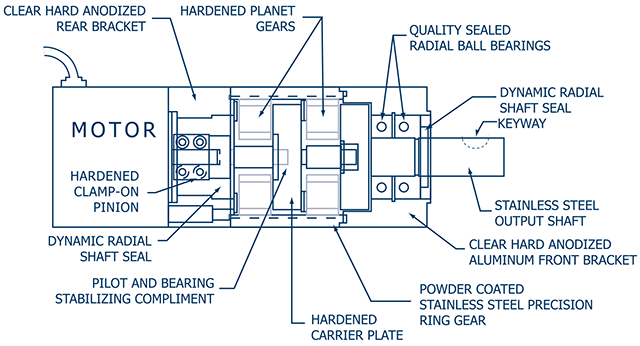

CORE FEATURES

  • Dynamic radial shaft seal at the input and output
  • Enclosure rating: IP65
  • Operating temperature range: -20°F to 250°F
  • Aluminum hard anodized rear & front brackets with a surface hardness of 60 rockwell
  • Alloy steel powder coated ring gear
  • Quality sealed radial ball bearings
  • Stainless steel output shaft
  • Hardened precision gearing throughout
  • Precision clamp on pinion with four clamping screws to eliminate slippage
