RIGHT ANGLE GEARHEADSPLANETARY GEARHEAd Series

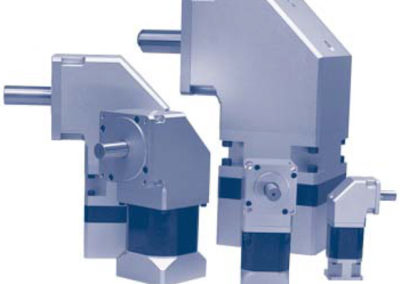

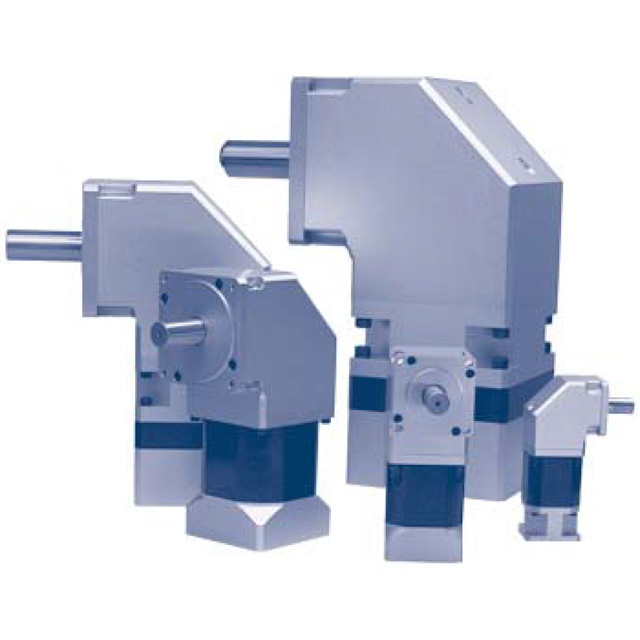

Carson offers two lines of right angle planetary gearheads, the Right Angle Eliminator (RE) and the Right Angle Precision (RP). The Right Angle Eliminator line is offered in sizes 17, 23 & 34. The Right Angle Precision line is offered in sizes 17, 23, 34, 42 & 56. Standard ratios from 3:1 to 100:1. Capable of producing ratios up to 10,000:1.

CORE FEATURES

  • Enclosure rating: IP65
  • Operating temperature range: -20°F to 250°F

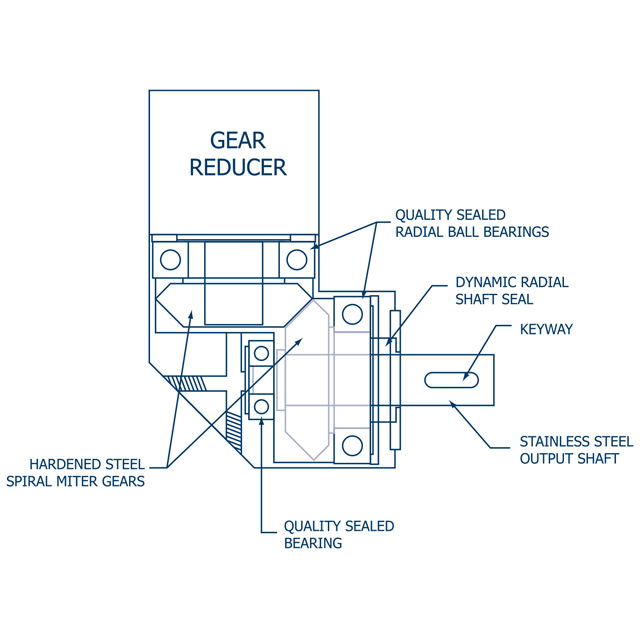

  • Hardened steel spiral miter gears

SPECS & FILES

GALLERY

How to Select the Best RIGHT ANGLE GEARHEADS & SPEED REDUCERS

Right angle gearheads are the right tool for the job when you need to fit a motor into a tight space.

In these instances, when an inline gearhead won’t fit, a right angle speed reducer can be a more versatile and adaptable way to get the job done.

These right-angle planetary gearheads allow motors to be installed at right angles to the axis of equipment. This design type can be especially useful in assembly components, such as belt conveyors and mechanical door hinges. Some other applications of right angle gearheads include:

Get USA Made RIGHT ANGLE GEARHEADS AND SPEED REDUCERS
  • Automated welding equipment
  • Conveyor manufacturers
  • Medical appliances and MRI machines
  • Office equipment
  • Overhead doors and window manufacturers



  • Packaging and food handling machines
  • Printing equipment
  • Semi-conductor assembly machines
  • Surgical beds and tables
  • Vending machines



Because they incorporate a right angle, these gear reducers are ideal for keeping equipment compact. They are also often just as strong as inline gearheads and can handle similar levels of high torque.

Choosing the right, right angle gearhead

We work with our customers to deliver right angle planetary gearheads that fit their budgets and timelines.

Carson offers two lines of NEMA right angle planetary gearheads: the Right Angle Eliminator (RE) and the Right Angle Precision (RP). The Right Angle Eliminator line is offered in sizes 17, 23, and 34. The Right Angle Precision line is offered in sizes 17, 23, 34, 42, and 56. Both lines have standard ratios from 3:1 to 100:1 and can produce ratios up to 10,000:1. Both the RP and the RE lines deliver high torque and quiet, smooth operation.

In both the RE and the RP lines, the enclosure rating is IP65, and the operating temperature range is 20°F to 250°F. Both are made with hardened steel spiral miter gears. They are fully sealed and come with a stainless-steel output shaft. All the housing and mounting brackets are of aircraft-grade aluminum to reduce weight.

To read more about the specs and features of the RE and RP lines, click here.

Custom right angle gearheads

In addition to the RE and RP lines, Carson Manufacturing regularly helps clients engineer and develop the right angle planetary gearhead their project requires. We can create the specific speed reducer for the job from slight modifications in existing designs to complete custom right angle gearheads built-to-suit. We see these projects as an opportunity to work with our clients to create solutions for their specific needs. By leveraging this type of gearhead’s adaptability, we can help make the right speed reducer for the project’s specifications.

Like the NEMA right angle gearheads, our custom right angle speed reducers also have the same enclosure ratings, temperature ranges and are made with hardened steel spiral miter gears. They are also fully sealed and come with a stainless steel output shaft. Like the RE and RP lines, all the housing and mounting brackets are of aircraft-grade aluminum to reduce weight. To read more about our custom right angle gearhead designs, click here.

Getting the right angle speed reducer you need on time and on budget

In addition to finding a right angle gearhead that’s the right fit for a project, it’s also essential to get the product you need in time. Because Carson Manufacturing makes its products in the United States, we can deliver gearheads from the RE and RP lines within two weeks, and custom right angle gearheads can be produced within three weeks.

At Carson Manufacturing, we’re dedicated to the success of our customers. So, we provide them with well-designed and accurately crafted products at an affordable price with exceptional service. Our team of professionals works closely with our partners to account for every detail. Our desire to pursue quality in both craftsmanship and service has provided us a reputation for being equipped and capable of meeting our partners’ creative goals. While statistical data drives our service and quality standards, we understand the most significant statistic is a happy customer.

To get the right angle gearhead that fits the specs for your job, as well as your timeline and budget, contact us today

Stop Worrying that the Wrong Gearhead or Manufacturer Will Jeopardize Your Business

We understand that the success of your business and machines relies on reliable, planetary gearheads done right, on budget and on time. Because we are committed to your success and want to ensure you have the best result, if your project needs a custom design, we won’t charge you for the design, unlike other manufacturers. And, each and every design is strenuously tested under multitudes of variable conditions and under various technical specifications and requirements.

  • Our gearheads are the result of 40+ years of industry research, development, and testing
  • Every design is strenuously tested in our internal research and development division
  • No design fee for custom gearheads to fit customers machine specifications
  • Always arrives on time, on budget
  • Manufactured 100% in the USA
